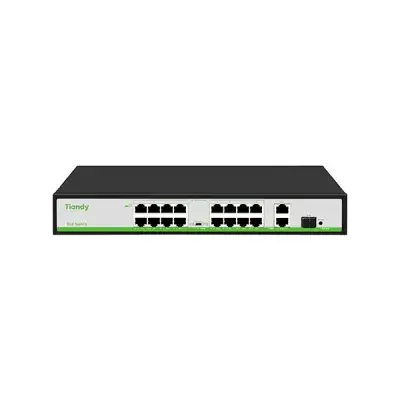

Tiandy TC-P3S019 Spec:H/1621/AT/180 16CH PoE Switch with Uplink Giga & SFP Ports

Tiandy TC-P3S019 Spec:H/1621/AT/180 16CH PoE Switch with Uplink Giga & SFP Ports is designed for stable and simple network and surveillance setups where power and data are needed through a single cable. It comes with 16 fast Ethernet PoE ports, 2 Gigabit Ethernet uplink ports, and 1 Gigabit SFP port, making it suitable for IP cameras, NVRs, access points, and other network devices. This switch follows IEEE 802.3, 802.3u, 802.3ab, 802.3z, and 802.3x standards and supports IEEE 802.3af and 802.3at PoE protocols. Each PoE port provides up to 30W with a total PoE power budget of 180W and a 52V DC output. Ports support auto-adaptive 10/100M speed, and Extend mode allows long-distance transmission by forcing ports 1 to 16 to 10M speed with AI mode enabled.

Zero configuration support allows the switch to automatically supply power to compatible devices. PoE priority is enabled by default from port 1 to port 16 to ensure stable power delivery. Flow control supports IEEE 802.3x for full duplex and back pressure for half duplex. A three-gear DIP switch allows easy switching between Default, VLAN, and Extend modes. LED indicators help monitor power, link status, PoE status, and overall operation. The switch offers 9.2Gbps bandwidth, 6.84Mpps throughput, 3Mbit packet buffer, and supports up to 2K MAC addresses using store-and-forward transfer mode. It supports surge protection up to 4KV common mode and 2KV differential mode, with ESD protection up to 8KV air and 6KV contact.

Overview of Tiandy TC-P3S019 Spec:H/1621/AT/180 16CH PoE Switch with Uplink Giga & SFP Ports

• 16*10/100M POE ports + 2* 1000M Ethernet Uplink ports +1*1000M SFP Port;
• Comply with IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z standards;
• Ethernet port 10/100M rate auto adaptive; n PoE port is in Extend mode, and ports 1-16 force 10M to automatically turn on AI mode;
• Supports POE priority, in order from 1 to 16 ports, enabled by default;
• Flow control method: IEEE 802.3x standard is used for full duplex, and Back pressure standard is used for half duplex;
• Zero configuration feature, automatically supplied to adaptive devices;
• Monitor the working status of the panel indicator light and assist in fault analysis;
• It is equipped with a three gear one key intelligent Dip switch, which supports VLAN, Default and Extend modes;
• Support port lightning surge: common mode 4KV, differential mode 2KV; Electrostatic ESD: air 8KV, contact 6KV. (level B)

It supports Cat3 to Cat5 UTP cables up to 100 meters and both single-mode and multi-mode fiber. The metal body measures 320×207×45mm and operates in temperatures from -10°C to 50°C. Powered by AC 100–240V, it consumes up to 6W without PoE and supports a 1-year brand warranty.
