| Model Version | POE300 1.0 |
| Protocols | 802.3 Protocols: – 802.3i 10 Mbps over Twisted Pair – 802.3u 100 Mbps over Twisted Pair – 802.3ab 1 Gbps over Twisted Pair – 802.3af PoE – 802.3at PoE – 802.3bt PoE |
| PoE | Uplink Stream: 1× GbE Downlink Stream: 1× GbE, 802.3at/af/bt Downlink Pin Assignment: Four-Pair Transmission Distance: |
| Interfaces | LED: – Power – PoE Wattage Power Input: AC Inlet |
| Power | AC: 100-240V, 50/60Hz Max Power Output: 60W |
| Reliability | Power Protection: – Surge Protection – ESD Protection – Overvoltage Protection – Short-Circuit Protection EMS: Grounding Methods: Three-Prong Plug Environment: |
| Certifications | FCC, CE |
| Mechanical | Installation: – Desktop – Wall-mount Dimension: Casing Material: Metal |
| Package Content | POE300 Power Cord Mounting Kit Installation Guide |
| Warranty | 01-Year Brand Warranty |

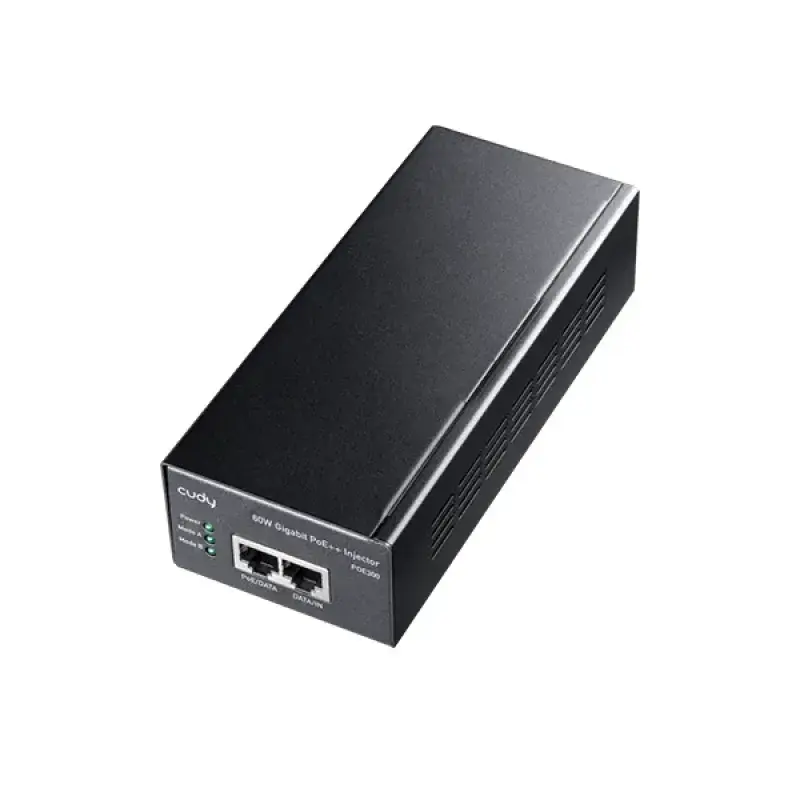

CUDY POE300 60W Gigabit PoE++ Injector
CUDY POE300 60W Gigabit PoE++ Injector is a premium power-over-Ethernet injector for IP cameras, Wi-Fi access points, and VoIP phones. It sends data and power over a single Ethernet cable with up to 60W power delivery over 100 meters. Ideal for indoor applications, it powers high-power PoE devices like PTZ IP cameras and dual-band Wi-Fi access points. With IEEE 802.3af and 802.3at standard compatibility, the POE300 is fully compatible with the majority of PoE and PoE+ devices. It uses all 4 wire pairs—pins 1/2(-), 3/6(+), 4/5(+), and 7/8(−)—to transmit higher power levels. Note: It does not support 802.3bt (PoE++) devices.
This injector features one Gigabit Ethernet input and one Gigabit Ethernet output, offering fast data transfer of up to 1000 Mbps. It comes equipped with surge and ESD protection to safeguard connected devices against power surges and electrical shock. A small metal box contains a power LED for easy monitoring and supports wall mounting, occupying less space in the office or home environment. It operates in temperatures of 0°C to 40°C and supports 85% non-condensing humidity.
