| Video and Audio | Access Channel: 8 Incoming Bandwidth: 60Mbps Outgoing Bandwidth: 40Mbps Resolution: 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF Preview Decoding Capability: Playback Decoding Capability: Third-party Camera Access: ONVIF(Profile S/T); RTSP HDMI Output: VGA Output: Multi-screen Display: |
| Compression Standard | Video Compression: S+265; H.265; S+264; H.264 Audio Compression: G.711A; G.711U; ADPCM_D Stream Type: Video; Video & Audio |
| Network | Network Protocol: ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SMTP; SSH; TCP; UDP; Unicast; UPnP Mobile Client: EasyLive Plus (Android, iOS) |
| Recording Playback | Multi-channel Playback: 4 Record Mode: Alarm Recording; Schedule Recording Storage Method: Local HDD Backup: USB storage device Playback Function: |
| Alarm | General Alarm: Motion Detection; Mask Alarm; Alarm Input(IPC)
Exceptions Alarm: |
| Intelligent Analytics | AI by Camera: Smart Alarm; Human/Vehicle Classification |
| Storage | HDD Capacity: Up to 8 TB capacity for each HDD |
| External Port | USB: 2×USB2.0 HDMI: 1×HDMI VGA: 1×VGA Network Interface: 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port SATA: 1×SATA interface |
| PoE | PoE Interface: 8×RJ45, 10/100 Mbps self-adaptive Ethernet port PoE Budget: 48W Power per PoE Port: 30W Standard: IEEE 802.3 af/at |
| General | UI Language: English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese Power Supply: DC48V Power Consumption: <10W(without HDD&without PoE) NetWeight: 0.47kg GrossWeight: 0.89kg Boundary Dimensions: 201(L)202(W)43(H)mm Package Dimensions: 315(L)70(W)235(H)mm Operating Temperature: -10℃~+55℃ (+14℉~+131℉) Operating Humidity: 10%~90%RH (non-condensing) Storage Temperature: -20℃~+60℃ (-4℉~+140℉) Package Kit: Network Video Recorder*1; Screw Pack*1; Mouse*1; |
| Warranty | 1-Year Brand Warranty |

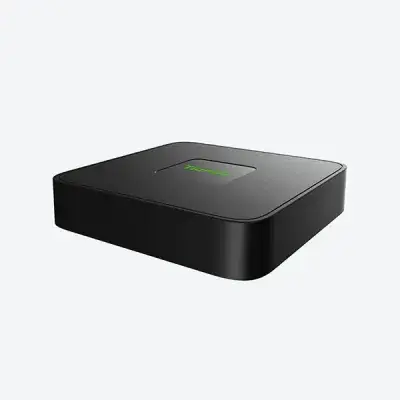

Tiandy TC-R3108 Spec:I/B/P8/C/Eu/L/S/V2.0 1HDD 8ch PSE NVR
Tiandy TC-R3108 Spec:I/B/P8/C/Eu/L/S/V2.0 1HDD 8ch PSE NVR is an 8-channel PoE network video recorder made for small to mid-size IP camera systems where easy setup and stable recording are needed. It supports up to 8 IP cameras with 60Mbps incoming and 40Mbps outgoing bandwidth, allowing smooth live view and recording. The NVR supports S+265, H.265, S+264, and H.264 video formats, and S+265 compression can reduce storage usage by up to 75% while keeping clear video output.
This NVR supports camera resolutions up to 6MP and can decode one 6MP camera at 30fps or four 1080P cameras at 30fps. It allows 4-channel synchronous playback and supports a wide range of resolutions including 6MP, 5MP, 4MP, 3MP, 1080P, 720P, and lower formats. HDMI and VGA outputs work at the same time, with HDMI output supporting up to 1080P resolution and multi-screen display options from 1 to 9 views on both HDMI and VGA. The built-in PoE switch includes 8 RJ45 PoE ports with a total PoE budget of 48W and up to 30W per port, following IEEE 802.3af and 802.3at standards. This allows IP cameras to receive power and data through a single network cable. The recorder also includes one RJ45 LAN port, two USB 2.0 ports, one SATA interface supporting up to 8TB HDD, and USB backup support.
Overview of Tiandy TC-R3108 Spec:I/B/P8/C/Eu/L/S/V2.0 1HDD 8ch PSE NVR:
- Up to 8-ch IP camera accesses
- Incoming/Outgoing bandwidth: 60Mbps/40Mbps
- S+265, H.265, S+264, H.264 video formats
- Max. decoding capability: 6MP(30fps)×1 or 1080P(30fps)×4
- 4-ch synchronous playback
- Up to 8 TB capacity for each HDD
- Simultaneous HDMI and VGA outputs
- HDMI output at up to 1080P resolution
- 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
- PoE interface, 8×RJ45, 10/100 Mbps self-adaptive Ethernet port
- S+ 265 compression effectively reduces the storage space by up to 75%
- Support cloud upgrade
It supports ONVIF and RTSP for third-party camera access, cloud upgrade, mobile viewing through EasyLive Plus on Android and iOS, and web access through major browsers. Alarm features include motion detection, mask alarm, system alerts, and PoE overload warnings. AI features depend on the camera and include smart alarm and human and vehicle classification. The unit runs on DC48V power, uses less than 10W without HDD and PoE, works in a wide temperature range, includes all standard accessories, and comes with a 1-year brand warranty.
