| I/O Interface | Power: AC INPUT (100-240V) Ethernet: 4*10/100Mbps PoE Ports ,2*10/100Mbps RJ45 Uplink Ports |
| Performance | Bandwidth: 1.2 Gbps Throughput: 0.8928Mpps Packet Buffer: 448K MAC Address: 1K Transfer Mode: Store and forward |
| Standard | Network Protocol: EEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3x (Flow control) PoE Protocol: Industrial Standard: EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) Network Medium: |
| Function | LED Indicators PWR (Power Supply), Mode (DIP), 1-6 Green (Link & Data), POE Max (Power)
PWR: POE LED Buttons: Dual color light selection: default green (link data), switch yellow light (POE) |
| DIP Switch | VLAN: VLAN: (Port Isolation Mode). In this mode, the PoE ports (1-4) of the switch cannot communicate with each other and can only communicate with the Uplink port (5, 6). The port AI mode (PoE Watchdog) is turned on. Default: Extend: |
| Environment | Working Environment: Working Temperature: -10~50℃ Storage Temperature: -40~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
| Physical Specifications | Dimension: Product Dimensions: 200*118*44mm Package Dimensions: 245*190*60mm Weight: Power Voltage: Power: |
| Warranty | 1-Year Brand Warranty |

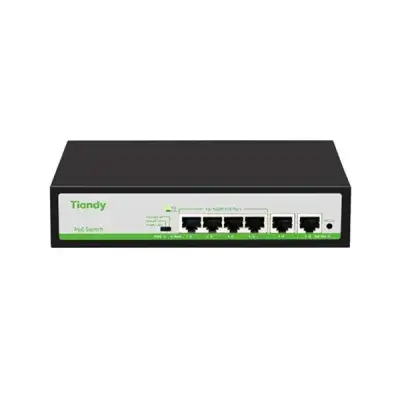

Tiandy TC-P3S06 Spec:F/0420/AT/55 4CH PoE Switch with Uplink Ports
Tiandy TC-P3S06 Spec:F/0420/AT/55 4CH PoE Switch with Uplink Ports is a compact and efficient solution for small IP camera and network setups. It features 4×10/100Mbps PoE ports and 2×10/100Mbps RJ45 uplink ports, making it suitable for CCTV systems, access points, and other PoE-powered devices. The switch follows IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards and supports 10/100Mbps auto-adaptive Ethernet with Auto MDI/MDIX for easy connection.
This switch supports IEEE 802.3af and IEEE 802.3at PoE standards, supplying up to 30W per port with a total PoE power budget of 55W at DC 52V. PoE priority is supported from port 1 to port 4, ensuring stable power delivery to key devices. It uses a store-and-forward switching method and offers 1.2Gbps bandwidth, 0.8928Mpps throughput, a 448K packet buffer, and a 1K MAC address table for smooth data handling. A three-mode intelligent DIP switch allows quick selection between VLAN, Default, and Extend modes. VLAN mode isolates PoE ports so they only communicate with uplink ports and enables PoE watchdog. Default mode allows all ports to communicate with adaptive speeds. Extend mode forces ports 1–4 to 10Mbps and supports data transmission up to 220 meters while keeping PoE watchdog active.
LED indicators clearly show power status, DIP mode, link activity, and PoE load to help with monitoring and fault checks. The switch includes surge protection up to 4KV and ESD protection up to 8KV air and 6KV contact, ensuring stable operation. It works reliably in temperatures from -10°C to 50°C and is powered by AC 100–240V with a maximum mainboard power use of 10W. The metal body measures 200×118×44mm, weighs 0.54kg, and comes with a 1-year brand warranty.
