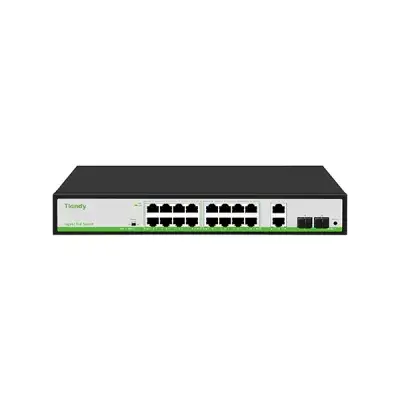

Tiandy TC-P3S020 Spec:G/1622/AT/180 16CH Giga PoE Switch with Giga Uplink & SFP Ports

Tiandy TC-P3S020 Spec:G/1622/AT/180 16CH Giga PoE Switch with Giga Uplink & SFP Ports is built for high-speed networks that need both power and data over one cable. It includes 16 Gigabit PoE ports, 2 Gigabit Ethernet uplink ports, and 2 Gigabit SFP ports, making it suitable for IP cameras, NVRs, access points, and core network connections. All Ethernet ports support 10/100/1000M self-adaptive speed and follow IEEE 802.3, 802.3u, 802.3ab, 802.3x, and 802.3z standards. It supports IEEE 802.3af and 802.3at PoE protocols with a DC 52V output and a total PoE power budget of 180W. PoE priority is enabled by default from port 1 to port 16 to ensure stable power delivery for key devices.

The switch supports Extend mode through a DIP switch. When enabled, ports 9 to 16 are forced to 10M speed with AI mode turned on, allowing transmission distances up to 220 meters while supporting PoE watchdog. In common mode, all ports communicate normally with speeds up to 1000M and distances up to 100 meters. Zero configuration allows automatic power supply to compatible devices, reducing setup time. With 40Gbps switching bandwidth, 29.76Mpps throughput, 3Mbit packet buffer, and support for 8K MAC addresses, this switch handles heavy data traffic smoothly using store-and-forward transmission. LED indicators show power, link status, data activity, and PoE status for easy monitoring and fault checking.

Overview of Tiandy TC-P3S020 Spec:G/1622/AT/180 16CH Giga PoE Switch:

• 16* 10/100/1000M PoE Ports+2*Gigabit Uplink+2* Gigabit SFP ports；
• Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab standard;
• Ethernet Ports support 10/100/1000M self-adaptive;
• The AI mode is automatically enabled 10M speed for Ports 9~16 in Extend mode;
• POE priority is supported, from port 1 to port 16, which is enabled by default；
• Flow control mode: IEEE 802.3X standard for full duplex, and Back Pressure standard for half duplex
• Zero configuration feature, automatically supplied to adaptive equipment;
• Panel indicator monitoring status and help failure analysis;
• With DIP switch, support Extend modes;
• Support port lightning surge: common mode 4KV (level B) Electrostatic ESD: air 8KV, contact 6KV. (level C)

The device supports Cat3 to Cat5 UTP or STP cables and both single-mode and multi-mode fiber. It includes surge protection up to 4KV and ESD protection up to 8KV air and 6KV contact. Operating temperature ranges from -10°C to 50°C. The metal body measures 320×207×44mm and weighs 1.78kg. Powered by AC 100–240V, it uses up to 10W without PoE and includes a 1-year brand warranty.
