| Camera | Image Sensor: 1/2.8″CMOS Min. Illumination: Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR Shutter Time: 1s~1/100000s Day&Night: IR-cut filter with auto switch (ICR) Smart IR: Yes WDR: DWDR S/N: >38dB Angle Adjustment: 0~350°(P); -90~90°(T) |
| Lens | Lens Type: Fixed focal lens Focal Length: 4mm Lens Mount: M12 Aperture Range: F2.0 Aperture Type: Fixed Field of View: 78.9°(H); 41°(V); 92.9°(D) DORI Distance: |
| Pan & Tilt | Pan Speed: 45°/s Tilt Speed: 30°/s Preset: 255 |
| Illuminator | IR LEDs: 4 IR Distance: Up to 15m Wavelength: 850nm White LEDs: 1 Whitelight Distance: 8m |
| Compression Standard | Video Compression: S+265/H.265/H.264B/H.264M/H.264H Video Bit Rate: 32k~4Mbps Audio Compression: G.711A/G.711U Audio Sampling Rate: 8kHz/16kHz |
| Image | Max. Resolution: 4MP,2560×1440@20fps
Main Stream: Sub Stream: BLC: Yes White Balance: OSD: Privacy Mask: 4 black static areas |
| Feature | Exceptions Alarm: Disk Full; Disk R/W Error; IP Address Conflict Linkage Method: Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture Video Analytics: Smart Alarm Auto-Tracking: Yes |
| Network | Protocols: RTSP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast System Compatibility: ONVIF(Profile S/T) ; SDK; CGI; Milestone Remote Connection: ≤2 Client: Easy7 VMS Mobile Client: EasyLive Plus |
| Wi-Fi | Transmission Distance: Up tp 30m( based on actual environment) Wireless Standard: IEEE802.11b/ 802.11g/802.11n Frequency Range: 2.4 GHz ~ 2.4835 GHz Channel Bandwidth: 20/40MHz Wi-Fi Security: WPA-PSK/WPA2-PSK |
| Interface | Built-in Mic: 1×Built-in Mic Built-in Speaker: 1×Built-in Loudspeaker Reset Button: Yes On-board Storage: Support microSD/microSDHC/microSDXC card,up to 512GB |
| General | Operating Temperature: -10℃-45℃(14℉~113℉) Operating Humidity: ≤95%RH Storage Temperature: -10℃-45℃(14℉~113℉) Storage Humidity: 10%~95%RH(non-condensing) Power Supply: DC5V±5%,Max. 7W Protection: Surge500V; ESD6000V Boundary Dimensions: 74(L)74(W)118(H)mm Package Dimensions: 97(L)97(W)165(H)mm GrossWeight: 0.38Kg |
| Warranty | 1-Year Brand Warranty |

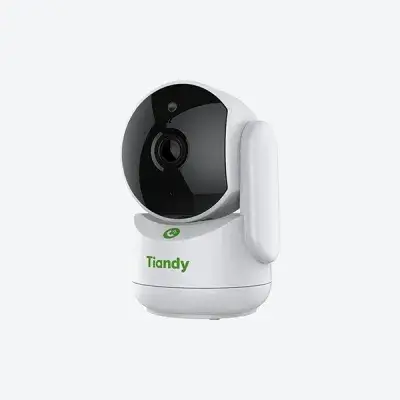

Tiandy TC-H342A Spec:I2W/WIFI/Eu/4mm 4MP Fixed Color Maker Wi-Fi PT Camera
Tiandy TC-H342A Spec:I2W/WIFI/Eu/4mm 4MP Fixed Color Maker Wi-Fi PT Camera is a compact indoor pan and tilt camera designed for home and small office monitoring. It records sharp 4MP video at 2560×1440 resolution with up to 20fps and supports S+265, H.265, and H.264 formats to save bandwidth and storage. The camera uses a 1/2.8″ CMOS sensor and can capture color video in low light at 0.02 Lux. In complete darkness, Smart IR with four IR LEDs provides night vision up to 15 meters, while a white LED supports color view up to 8 meters.
The fixed 4mm lens offers a balanced field of view, and DWDR, 3D DNR, BLC, HLC, and AGC help keep images clear in mixed lighting. Pan and tilt functions allow wide coverage with up to 350° pan and -90° to 90° tilt, fast movement speed, and support for 255 preset points. Auto-tracking and smart alarm features help detect and follow motion. A built-in microphone and loudspeaker support two-way audio using G.711 formats.
The camera supports microSD, microSDHC, and microSDXC cards up to 512GB for local storage. It works over 2.4GHz Wi-Fi with IEEE 802.11 b/g/n standards and WPA/WPA2 security, with a wireless range up to 30 meters depending on the environment. It is compatible with ONVIF Profile S/T, SDK, CGI, and Milestone, and works with Easy7 VMS and EasyLive Plus mobile app. Up to two users can connect remotely. The plastic body is made for indoor use and works in temperatures from -10℃ to 45℃ with humidity up to 95%. Power is supplied through DC 5V with a maximum of 7W. The camera includes surge and ESD protection, compact dimensions, and comes with a 1-year brand warranty.
