| Camera | Image Sensor: 1/2.8″CMOS Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR Shutter Time: 1s~1/100000s Day&Night: IR-cut filter with auto switch (ICR) Smart IR: Yes WDR: DWDR S/N: >48dB Angle Adjustment: 0~345°; 0~90°(T) |
| Lens | Lens Type: Fixed focal lens Focal Length: 4mm Lens Mount: M12 Aperture Range: F1.6 Aperture Type: Fixed Field of View: 86.8°(H); 46.1°(V); 99.7°(D) DORI Distance: |
| Pan & Tilt | Pan Speed: 30°/s Tilt Speed: 25°/s Preset: 255 |
| Illuminator | IR LEDs: 4 IR Distance: Up to 50m Wavelength: 850nm White LEDs: 4 Whitelight Distance: 15m Red and Blue Alarm Flash: Yes |
| Compression Standard | Video Compression: S+265/H.265/H.264B/H.264M/H.264H Video Bit Rate: 32k~4Mbps Audio Compression: G.711A/G.711U Audio Sampling Rate: 8kHz/16kHz |
| Image | Max. Resolution: 3MP,2304×1296@20fps
Main Stream: Sub Stream: BLC: Yes White Balance: OSD: Privacy Mask: 4 black static areas |
| Feature | Exceptions Alarm: Disk Full; Disk R/W Error; IP Address Conflict; Network Disconnection Linkage Method: Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture Video Analytics: Smart Alarm Auto-Tracking: Yes |
| Network | ANR: Yes Protocols: RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast System Compatibility: ONVIF(Profile S/T) ; SDK; CGI; Milestone Remote Connection: ≤2 Client: Easy7 VMS Mobile Client: EasyLive Plus Web: IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Wi-Fi | Transmission Distance: Up tp 30m( based on actual environment) Wireless Standard: IEEE802.11b/ 802.11g/802.11n Frequency Range: 2.4 GHz ~ 2.4835 GHz Channel Bandwidth: 20/40MHz Wi-Fi Security: WPA-PSK/WPA2-PSK |
| Interface | Communication Interface: 1×RJ-45 (10/100 Base-T) Built-in Mic: 1×Built-in Mic Built-in Speaker: 1×Built-in Loudspeaker Reset Button: Yes On-board Storage: Support microSD/microSDHC/microSDXC card,up to 256GB |
| General | Web Client Language: 3 languages Simple Chinese/English/Vietnamese Operating Temperature: -30℃~60℃(-22℉~140℉) |
| Warranty | 1-Year Brand Warranty |

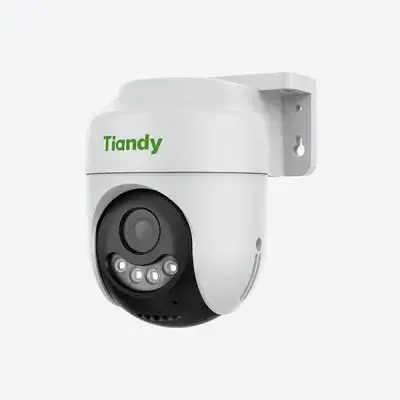

Tiandy TC-H333K Spec:AK/I5W/WIFI/En/4mm WiFi PT Camera
Tiandy TC-H333K Spec:AK/I5W/WIFI/En/4mm WiFi PT Camera is a 3MP WiFi pan and tilt security camera made for home, shop, office, and outdoor area monitoring. It records clear video at 2304×1296 resolution with up to 20fps and supports S+265, H.265, and H.264 formats to reduce storage use. The plastic body is rated IP66 and works smoothly in harsh weather, with operating temperature from -30℃ to 60℃ and humidity up to 95%.
This camera uses a 1/2.8″ CMOS sensor and can capture color images in low light at 0.02 Lux. In total darkness, Smart IR with four IR LEDs gives night vision up to 50 meters. Four white LEDs provide color light up to 15 meters and also support red and blue alarm flashing. The fixed 4mm lens offers a wide field of view, while DWDR, 3D DNR, BLC, HLC, and AGC help keep video clear in different light conditions. Pan and tilt movement covers a wide area with up to 345° pan and 90° tilt, fast movement speed, and support for 255 preset points. Auto-tracking and smart alarm features help follow moving objects. A built-in microphone and loudspeaker allow two-way audio using G.711 formats. The camera supports microSD cards up to 256GB for local storage.
WiFi supports IEEE 802.11 b/g/n on 2.4GHz with WPA and WPA2 security and a working range up to 30 meters depending on the area. It also includes a LAN port for wired use. The camera works with ONVIF Profile S/T, SDK, CGI, and Milestone, supports Easy7 VMS and EasyLive Plus mobile app, and allows up to two remote users. Power is supplied by DC 12V with a maximum of 12W. The product comes with a 1-year brand warranty.
