| Camera | Image Sensor: 1/3″CMOS Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR Shutter Time: 1s-1/100000s Day&Night: Fixed IR-cut WDR: DWDR S/N: ≥52dB Angle Adjustment: 0~345°; 0~90° |
| Lens | Lens Type: Fixed focal lens Focal Length: 4mm Lens Mount: M12 Aperture Range: F1.6 Aperture Type: Fixed Field of View: 79.6°(H); 42.5°(V); 91.7°(D) DORI Distance: |
| Pan & Tilt | Pan Speed: 30°/s Tilt Speed: 25°/s Preset: 64 |
| Illuminator | IR LEDs: 2 IR Distance: Up to 30m Wavelength: 850nm White LEDs: 2 Whitelight Distance: 15m Red and Blue Alarm Flash: Yes |
| Compression Standard | Video Compression: S+265/H.265 Video Bit Rate: 1.2Mbps Audio Compression: G.711A Audio Sampling Rate: 16kHz |
| Image | Max. Resolution: 3MP,2304×1296@20fps Main Stream: PAL:20fps(2304×1296) Sub Stream: PAL:20fps(704×576) AGC: Yes 3D DNR: Yes White Balance: Auto OSD: 48*48; Lattice |
| Feature | General Alarm: Smart Alarm(human and vehicle detection) Exceptions Alarm: Disk Full; Disk R/W Error Linkage Method: Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture Auto-Tracking: Auto-Tracking |
| Network | Protocols: TCP/IP; UDP; ICMP; DNS; NTP; IPv4; SSH; Unicast Remote Connection: ≤2 Client: Easy7 VMS Mobile Client: EasyLive Plus |
| Interface | Built-in Mic: 1×Built-in Mic Built-in Speaker: 1×Built-in Loudspeaker Reset Button: Yes On-board Storage: Support microSD/microSDHC/microSDXC card,up to 256GB |
| General | Operating Temperature: -10℃~50℃(14℉~122℉);(Charge:-5℃~50℃) Operating Humidity: ≤95%RH Storage Temperature: -10℃~50℃(14℉~122℉) Storage Humidity: 10%~95%RH(non-condensing) Power Supply: DC5V±25%,Max. 10W Protection: Surge500V; ESD6000V; IP65 Boundary Dimensions: 158(L)105W)144(H)mm Package Dimensions: 255(L)200(W)180(H)mm GrossWeight: 1.27kg |
| Warranty | 1-Year Brand Warranty |

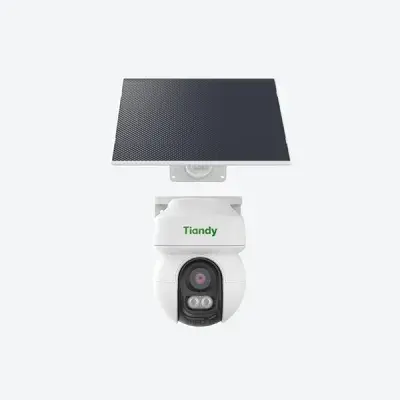

Tiandy TC-H333K 9DA-4 PT Camera
Tiandy TC-H333K 9DA-4 PT Camera is a smart security camera designed for indoor and outdoor use with stable performance and clear video. It uses a 1/3″ CMOS image sensor and records up to 3MP resolution at 2304×1296 with 20fps. The fixed 4mm lens with F1.6 aperture offers a wide viewing angle of up to 91.7° diagonal. Color video works in low light at 0.02 Lux, and night monitoring is supported with IR LEDs up to 30 meters, along with white LEDs for light alerts and red and blue alarm flash.
The camera supports smooth pan and tilt movement with 0–345° pan and 0–90° tilt, adjustable speed, and up to 64 preset points. DWDR, 3D DNR, AGC, and auto white balance help keep video clear in different lighting. DORI distance allows detection up to 59.26 meters and identification up to 5.93 meters. It supports S+265 and H.265 video compression with a bit rate of 1.2Mbps to reduce storage use. Audio recording and two-way talk are available through the built-in microphone and speaker using G.711A audio. Local storage is supported with microSD cards up to 256GB.
Smart alarm features include human and vehicle detection, auto-tracking, and multiple alarm actions such as sound, warm light, recording, and snapshot. Network support includes common IP protocols with up to two remote connections, Easy7 VMS software, and EasyLive Plus mobile app. The camera runs on DC5V power with a maximum of 10W, supports charging, works in temperatures from -10℃ to 50℃, and has IP65 protection against dust and water. It comes in a plastic body, has compact dimensions, weighs 1.27kg, and includes a 1-year brand warranty.
