| Camera | Image Sensor: 1/2.8″CMOS Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR Shutter Time: 1s~1/100000s Day&Night: IR-cut filter with auto switch (ICR) Smart IR: Yes WDR: DWDR S/N: >39dB Angle Adjustment: 0~360°(P); 0~90°(T); 0~360°(R) |
| Lens | Lens Type: Motorized Focal Length: 2.8~12mm Lens Mount: Φ14 Aperture Range: F1.6 Aperture Type: Fixed Field of View: 105.6°~29°(H); 58.8°~16.6°(V); 120.9°~33.4°(D) DORI Distance: T: |
| Illuminator | IR LEDs: 4 IR Distance: Up to 80m Wavelength: 850nm |
| Compression Standard | Video Compression: S+265/H.265/H.264B/H.264M/H.264H Video Bit Rate: 32k~4Mbps Audio Compression: G.711A/G.711U Audio Sampling Rate: 8kHz |
| Image | Max. Resolution: 2MP,1920×1080@30fps
Main Stream: Sub Stream: BLC: Yes White Balance: ROI: 8 rectangular static areas OSD: Privacy Mask: 4 black static areas |
| Feature | General Alarm: Motion Detection; Mask Alarm Exceptions Alarm: Disk Full; Disk R/W Error; IP Address Conflict; Network Disconnection Linkage Method: Trigger Recording; Trigger Capture; Notify Surveillance Center |
| Network | ANR: Yes
Protocols: RTSP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; System Compatibility: P2P(Mutually exclusive with Profile G); Remote Connection: ≤2 |
| Interface | Communication Interface: 1×RJ-45 (10/100 Base-T) Built-in Mic: 1×Built-in Mic Reset Button: Yes On-board Storage: Support microSD/microSDHC/microSDXC card, up to 512GB RTC: Yes |
| General | Web Client Language: 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/ French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian Operating Temperature: -30℃~60℃(-22℉~140℉) |
| Warranty | 1-Year Brand Warranty |

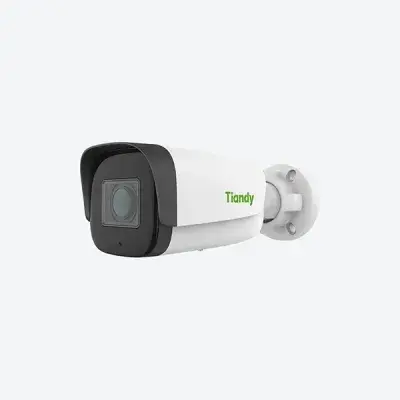

Tiandy TC-C32UN Spec:I8/A/E/Y/2.8-12mm/V4.2 2MP Motorized IR Bullet Camera
Tiandy TC-C32UN Spec:I8/A/E/Y/2.8-12mm/V4.2 2MP Motorized IR Bullet Camera is a full HD security camera designed for clear video monitoring in indoor and outdoor areas. It supports up to 2MP resolution at 1920×1080 with 30fps and uses a 1/2.8″ CMOS image sensor for stable image quality. The camera supports S+265, H.265, and H.264 video formats to reduce storage use while keeping video clear. It has a motorized 2.8–12mm lens with a wide to narrow field of view, allowing flexible angle control. The camera supports color vision at 0.02 Lux and black-and-white vision at 0 Lux with IR, with infrared night vision up to 80 meters using four IR LEDs.
The camera includes a built-in microphone and supports microSD, microSDHC, and microSDXC cards up to 512GB for local storage. Smart IR, DWDR, 3D DNR, BLC, HLC, AGC, defog, ROI, and privacy mask features help improve image clarity in different light conditions. It supports motion detection, mask alarm, and system alerts such as disk error and network disconnection. Video streaming is available through main and sub streams with PAL and NTSC options.
The housing is made of metal and plastic and meets IP67 standards for dust and water resistance. It works in temperatures from -30℃ to 60℃ with up to 95% humidity. Power is supported through DC 12V or PoE IEEE 802.3af, with low power use. The camera supports ONVIF Profile S, T, and G, RTSP, HTTP, HTTPS, and works with Easy7 VMS and EasyLive Plus mobile app. It includes RJ45 Ethernet, reset button, RTC, and supports up to 19 languages. The product comes with a 1-year brand warranty.
