| Camera | Image Sensor: 1/2.8″CMOS Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR Shutter Time: 1s~1/100000s Day&Night: IR-cut filter with auto switch (ICR) Smart IR: Yes WDR: DWDR S/N: >39dB Angle Adjustment: 0~350°(P); 0~70°(T); 0~350°(R) |
| Lens | Lens Type: Motorized Focal Length: 2.8~12mm Lens Mount: Φ14 Aperture Range: F1.6 Aperture Type: Fixed Field of View: 105.6°~29°(H); 58.8°~16.6°(V); 120.9°~33.4°(D) DORI Distance: |
| Illuminator | IR LEDs: 4 IR Distance: Up to 30m Wavelength: 850nm |
| Compression Standard | Video Compression: S+265/H.265/H.264B/H.264M/H.264H Video Bit Rate: 32k~4Mbps Audio Compression: G.711A/G.711U Audio Sampling Rate: 8kHz |
| Image | Max. Resolution: 2MP,1920×1080@30fps
Main Stream: Sub Stream: BLC: Yes White Balance: Auto/Semi-Auto/Manual/Sunshine/Nature Light/ ROI: 8 rectangular static areas OSD: Overlay of additional characters in 1 regions, 1 line, Privacy Mask: 4 black static areas |
| Feature | General Alarm: Motion Detection; Mask Alarm Exceptions Alarm: Disk Full; Disk R/W Error; IP Address Conflict; Network Disconnection Linkage Method: Trigger Recording; Trigger Capture; Notify Surveillance Center |
| Network | ANR: Yes
Protocols: RTSP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; DHCP; DNS; System Compatibility: P2P(Mutually exclusive with Profile G); ONVIF(Profile S/T/G) ; SDK; CGI; Milestone |
| Interface | Communication Interface: 1×RJ-45 (10/100 Base-T) Built-in Mic: 1×Built-in Mic Reset Button: Yes(Built-in) On-board Storage: Support microSD/microSDHC/microSDXC card, up to 512GB RTC: Yes |
| General | Web Client Language: 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/ French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian Operating Temperature: -30℃~60℃(-22℉~140℉) |
| Warranty | 1-Year Brand Warrnty |

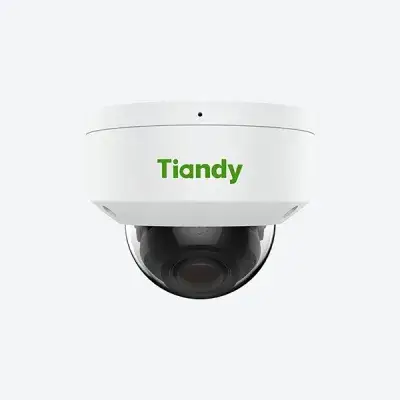

Tiandy TC-C32KN Spec:I3/A/E/Y/2.8-12mm/V4.2 2MP Motorized IR Dome Camera
Tiandy TC-C32KN Spec:I3/A/E/Y/2.8-12mm/V4.2 2MP Motorized IR Dome Camera is a full HD IP camera built for indoor and outdoor security monitoring. It uses a 1/2.8″ CMOS sensor and delivers 2MP resolution at 1920×1080 with up to 30fps. The camera supports 0.02 Lux color imaging and switches to IR mode in total darkness, with Smart IR and an IR range of up to 30 meters using four 850nm IR LEDs.
Tiandy TC-C32KN 2MP Motorized IR Dome Camera features a motorized 2.8–12mm lens with F1.6 aperture, allowing remote zoom and focus. The wide-to-tele field of view ranges from 105.6° to 29° horizontally. Angle adjustment supports pan, tilt, and rotate for flexible installation. DORI distance reaches up to 165.5 meters for detection at tele zoom and 16.5 meters for identification. Tiandy TC-C32KN 2MP Motorized IR Dome Camera supports DWDR, 3D DNR, BLC, HLC, AGC, defog, and multiple white balance modes for stable image quality. It uses S+265, H.265, and H.264 compression with a video bit rate up to 4Mbps. Audio is supported through a built-in microphone with G.711 formats.
Tiandy TC-C32KN 2MP Motorized IR Dome Camera includes motion detection, mask alarm, tripwire and perimeter support, ROI, privacy mask, and event linkage for recording or capture. It supports ANR and on-board storage with microSD cards up to 512GB. Network support includes ONVIF Profile S/T/G, RTSP, P2P, Easy7 VMS, and EasyLive Plus app. Tiandy TC-C32KN 2MP Motorized IR Dome Camera supports PoE or DC power, works from -30°C to 60°C, includes IP66 protection, surge and ESD protection, and comes with a 1-year brand warranty.
