| Camera | Image Sensor: 1/3″CMOS Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR Shutter Time: 1s~1/100000s Day&Night: IR-cut filter with auto switch (ICR) Smart IR: Yes WDR: DWDR S/N: >52dB Angle Adjustment: 0~360°(P); 0~80°(T); 0~360°(R) |
| Lens | Lens Type: Fixed focal lens Focal Length: 4mm Lens Mount: M12 Aperture Range: F1.6 Aperture Type: Fixed Field of View: 75.3°(H); 39.9°(V); 87.1°(D) DORI Distance: |
| Illuminator | IR LEDs: 2 IR Distance: Up to 30m Wavelength: 850nm White LEDs: 2 Whitelight Distance: Up to 15m |
| Compression Standard | Video Compression: S+265/H.265/H.264B/H.264M/H.264H Video Bit Rate: 32k~4Mbps Audio Compression: G.711A/G.711U Audio Sampling Rate: 8kHz |
| Image | Max. Resolution: 2MP,1920×1080@30fps
Main Stream: Sub Stream: BLC: Yes White Balance: OSD: Privacy Mask: 4 black static areas |
| Feature | General Alarm: Motion Detection Exceptions Alarm: IP Address Conflict |
| Network | Protocols: RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast System Compatibility: ONVIF(Profile S/T) ; SDK; CGI; Milestone Remote Connection: ≤2 Client: Easy7 VMS Web: IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | Communication Interface: 1×RJ-45 (10/100 Base-T) Built-in Mic: 1×Built-in Mic |
| General | Web Client Language: English Operating Temperature: -30℃~60℃(-22℉~140℉) Operating Humidity: ≤95%RH Storage Temperature: -30℃~60℃(-22℉~140℉) Storage Humidity: 10%~95%RH(non-condensing) Power Supply: PoE:IEEE 802.3af,Max. 2.5W Protection: Surge4000V; ESD6000V; IP67 Boundary Dimensions: 140(L)60(W)60(H)mm Package Dimensions: 155(L)75(W)85(H)mm GrossWeight: 0.2kg |
| Warranty | 1-Year Brand Warranty |

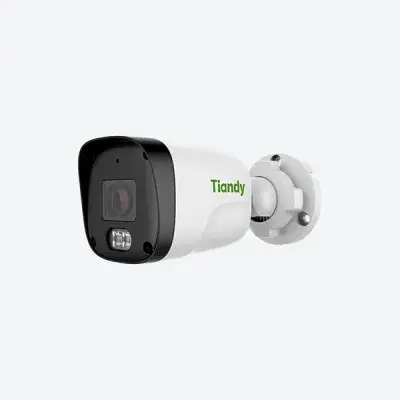

Tiandy TC-C321N 1ANB-4 (AK Series) Bullet Camera
Tiandy TC-C321N 1ANB-4 (AK Series) Bullet Camera is a compact 2MP IP camera made for basic and stable security use in homes, shops, offices, and outdoor areas. It records clear Full HD video at 1920×1080 resolution with up to 30fps and supports S+265, H.265, and H.264 compression to reduce bandwidth and storage use. The plastic housing with IP67 protection allows safe operation in rain, dust, and harsh weather, with working temperature from -30℃ to 60℃ and humidity up to 95%.
This camera uses a 1/3″ CMOS sensor and provides color video at low light levels of 0.02 Lux. In total darkness, Smart IR with two IR LEDs offers night vision up to 30 meters, while built-in white LEDs support color images up to 15 meters. The fixed 4mm lens delivers a balanced viewing angle and reliable DORI performance for detection, observation, recognition, and identification. DWDR, 3D DNR, BLC, HLC, and AGC help keep the image clear in bright and dark scenes.
A built-in microphone supports audio recording using G.711 formats. Motion detection is available for basic alerts, along with defog, privacy mask, OSD display, and multiple white balance modes. The camera supports RTSP, HTTP, TCP, UDP, and other standard network protocols and works with ONVIF Profile S/T, SDK, CGI, and Milestone systems. It connects through a 10/100 RJ-45 port and supports up to two remote users. Power is supplied only through PoE IEEE 802.3af with very low power use of up to 2.5W. The adjustable bullet design allows flexible installation, and the product comes with a 1-year brand warranty
