| Camera | Image Sensor: 1/3″CMOS Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR Shutter Time: 1s~1/100000s Day&Night: IR-cut filter with auto switch (ICR) Smart IR: Yes WDR: DWDR S/N: >52dB Angle Adjustment: 0~340°(P); 0~75°(T); 0~360°(R) |
| Lens | Lens Type: Fixed focal lens Focal Length: 2.8mm Lens Mount: M12 Aperture Range: F1.6 Aperture Type: Fixed Field of View: 90.7°(H); 50.9°(V); 102.7°(D) DORI Distance: |
| Illuminator | IR LEDs: 2 IR Distance: Up to 30m Wavelength: 850nm White LEDs: 2 Whitelight Distance: Up to 15m |
| Compression Standard | Video Compression: S+265/H.265/H.264B/H.264M/H.264H Video Bit Rate: 32k~4Mbps Audio Compression: G.711A/G.711U Audio Sampling Rate: 8kHz |
| Image | Max. Resolution: 2MP,1920×1080@30fps
Main Stream: Sub Stream: BLC: Yes White Balance: OSD: Privacy Mask: 4 black static areas |
| Feature | General Alarm: Motion Detection Exceptions Alarm: IP Address Conflict |
| Network | Protocols: RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast System Compatibility: ONVIF(Profile S/T) ; SDK; CGI; Milestone Remote Connection: ≤2 Client: Easy7 VMS Web: IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | Communication Interface: 1×RJ-45 (10/100 Base-T) Built-in Mic: 1×Built-in Mic |
| General | Web Client Language: English Operating Temperature: -30℃~60℃(-22℉~140℉) Operating Humidity: ≤95%RH Storage Temperature: -30℃~60℃(-22℉~140℉) Storage Humidity: 10%~95%RH(non-condensing) Power Supply: PoE:IEEE 802.3af,Max. 2.5W Protection: Surge4000V; ESD6000V Boundary Dimensions: 94(L)94(W)78(H)mm Package Dimensions: 105(L)105(W)85(H)mm GrossWeight: 0.17kg |
| Warranty | 1-Year Brand Warranty |

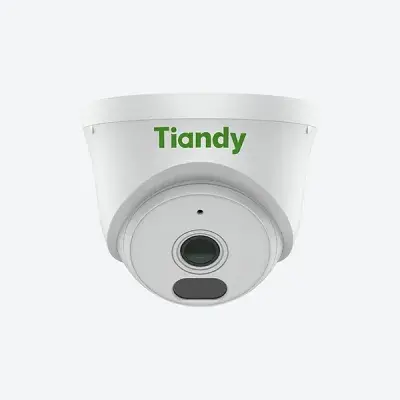

Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera
Tiandy TC-C320N 1ANB-28 (AK Series) Turret Camera is a compact 2MP IP camera made for indoor and outdoor security use in homes, offices, shops, and small business areas. It records clear Full HD video at 1920×1080 resolution with up to 30 frames per second and supports S+265, H.265, and H.264 video formats to save storage and network data. The plastic body keeps the camera lightweight and suitable for ceiling or wall mounting, with stable operation in temperatures from -30℃ to 60℃ and humidity up to 95%.
This camera uses a 1/3″ CMOS image sensor and can capture color video in low light down to 0.02 Lux. In total darkness, Smart IR with two IR LEDs provides night vision up to 30 meters, while built-in white LEDs support color images up to 15 meters. The fixed 2.8mm lens offers a wide field of view, making it useful for monitoring open areas. DWDR, 3D DNR, BLC, HLC, and AGC help maintain clear images in both bright and dark scenes.
A built-in microphone allows audio recording using G.711 formats at 8kHz. Motion detection supports basic alerts, and extra features include defog, privacy mask, OSD text display, and multiple white balance modes. The camera supports common network protocols such as RTSP, HTTP, TCP, UDP, and NTP, and works with ONVIF Profile S/T, SDK, CGI, and Milestone systems. It allows up to two remote connections and works with Easy7 VMS through supported web browsers. Power is supplied through PoE IEEE 802.3af with very low power use of up to 2.5W, reducing cable needs. The adjustable turret design allows flexible angle setup. The product comes with a 1-year brand warranty.
